AutoCAD dimension setting fundamentals

Track :

Engineering

Lessons no : 56

For Free Certificate After Complete The Course

To Register in Course you have to watch at least 30 Second of any lesson

Join The Course Go To Community Download Course Content

What will you learn in this course?
  • Master AutoCAD dimensioning tools for accurate and professional technical drawings
  • Configure and customize dimension styles to meet industry standards and project specifications
  • Apply advanced dimensioning techniques to enhance clarity and precision in AutoCAD drawings
  • Manage dimension settings efficiently for different project types and design requirements
  • Utilize AutoCAD commands to create, modify, and align dimensions effectively
  • Implement best practices for dimensioning to improve drawing readability and compliance
  • Troubleshoot common issues in dimension setting to ensure error-free drawings
  • Integrate dimensioning techniques with other AutoCAD features for comprehensive design workflows
  • Create detailed documentation by setting up precise and consistent dimensions in AutoCAD
  • Adapt dimension styles for various engineering, architectural, and construction projects
  • Optimize AutoCAD dimensioning workflows to increase productivity and accuracy
  • Develop skills to customize dimensioning tools for specific industry standards and client needs

How to Get The Certificate

  • You must have an account Register
  • Watch All Lessons
  • Watch at least 50% of Lesson Duration
  • you can follow your course progress From Your Profile
  • You can Register With Any Course For Free
  • The Certificate is free !
Lessons | 56

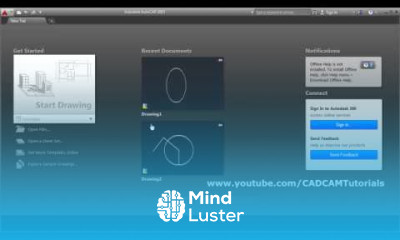

AutoCAD 2015 User Interface Tutorial
00:03:40

AutoCAD 2015 User Interface Tutorial

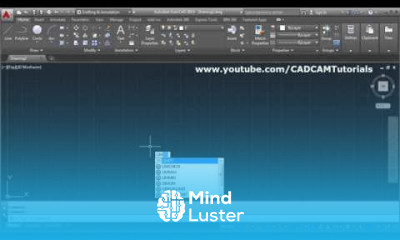

AutoCAD 2015 Drawing Limits Setting Tutorial
00:02:50

AutoCAD 2015 Drawing Limits Setting Tutorial

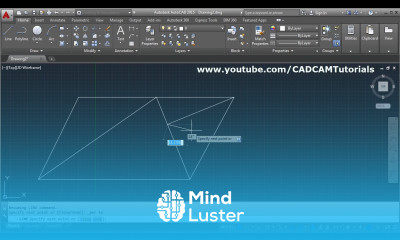

AutoCAD 2015 Line Command Tutorial Complete
00:15:34

AutoCAD 2015 Line Command Tutorial Complete

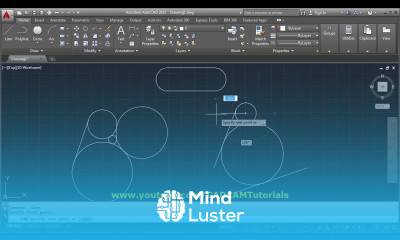

How to Make a Circle in AutoCAD AutoCAD Circle Tutorial Compete
00:06:41

How to Make a Circle in AutoCAD AutoCAD Circle Tutorial Compete

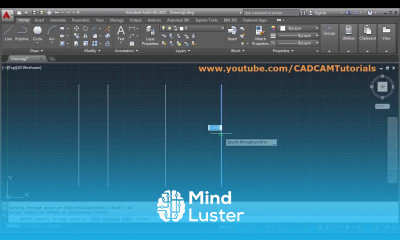

How to Create Offset in AutoCAD AutoCAD Offset Command Tutorial Complete
00:07:41

How to Create Offset in AutoCAD AutoCAD Offset Command Tutorial Complete

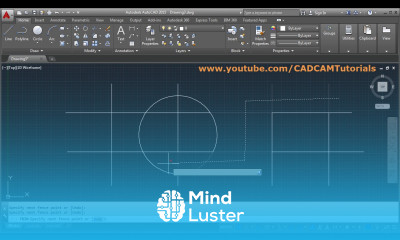

How to Use Trim Command in AutoCAD AutoCAD Trim Command Tutorial Complete
00:05:28

How to Use Trim Command in AutoCAD AutoCAD Trim Command Tutorial Complete

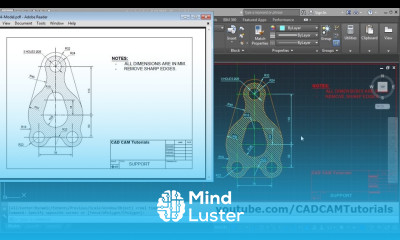

AutoCAD 2015 Tutorial for Beginners Complete Drawing Layers Hatch Dimensions Pdf
00:23:50

AutoCAD 2015 Tutorial for Beginners Complete Drawing Layers Hatch Dimensions Pdf

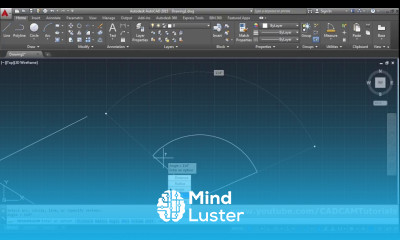

AutoCAD How to Measure Distance Angle Area Circumference Volume AutoCAD Measure Tool Tutorial
00:06:49

AutoCAD How to Measure Distance Angle Area Circumference Volume AutoCAD Measure Tool Tutorial
How to Create Polyline in AutoCAD AutoCAD Polyline Command Tutorial Complete
00:05:29

How to Create Polyline in AutoCAD AutoCAD Polyline Command Tutorial Complete

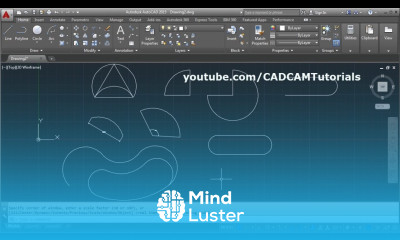

AutoCAD Arc Command Tutorial Complete
00:07:10

AutoCAD Arc Command Tutorial Complete
AutoCAD Rectangle Command Tutorial Complete Dimensions Line Thickness Rotation Elevation
00:06:30

AutoCAD Rectangle Command Tutorial Complete Dimensions Line Thickness Rotation Elevation

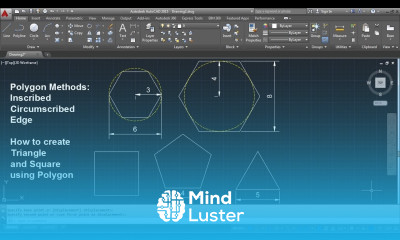

AutoCAD Polygon Command Tutorial Complete Inscribed Circumscribed Edge Triangle Square
00:05:38

AutoCAD Polygon Command Tutorial Complete Inscribed Circumscribed Edge Triangle Square

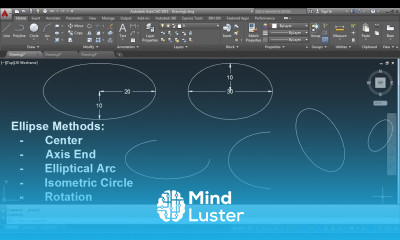

AutoCAD Ellipse Command Tutorial Complete Center Elliptical Arc Isometric Circle Rotation
00:10:53

AutoCAD Ellipse Command Tutorial Complete Center Elliptical Arc Isometric Circle Rotation
AutoCAD Construction Line Xline and Ray Command Tutorial Complete Hor Ver Ang Bisect Offset
00:03:35

AutoCAD Construction Line Xline and Ray Command Tutorial Complete Hor Ver Ang Bisect Offset
AutoCAD Point and Point Style Command Tutorial Complete Point Display Size Point Snap
00:03:42

AutoCAD Point and Point Style Command Tutorial Complete Point Display Size Point Snap

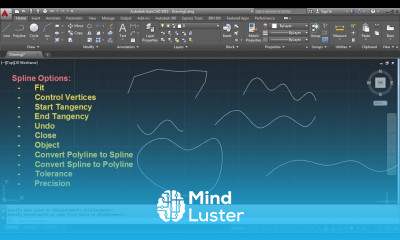

AutoCAD Spline Command Tutorial Complete Fit Control Points Convert to Polyline Precision
00:05:56

AutoCAD Spline Command Tutorial Complete Fit Control Points Convert to Polyline Precision
AutoCAD Divide and Measure Command Tutorial Complete Divide Line Arc in Equal Parts by Length
00:06:06

AutoCAD Divide and Measure Command Tutorial Complete Divide Line Arc in Equal Parts by Length

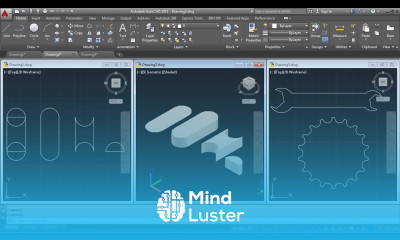

AutoCAD Region Command Tutorial Complete Union Mass Properties Substract Intersect Extrude
00:06:53

AutoCAD Region Command Tutorial Complete Union Mass Properties Substract Intersect Extrude
AutoCAD Revision Cloud Command Tutorial Complete Arc Length Inside Out Settings Scale Line Width
00:03:33

AutoCAD Revision Cloud Command Tutorial Complete Arc Length Inside Out Settings Scale Line Width

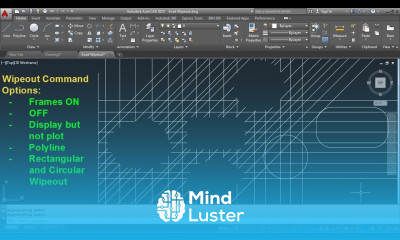

AutoCAD Wipeout Command Tutorial Complete Frame Visible Circle Does not Print Polyline
00:04:32

AutoCAD Wipeout Command Tutorial Complete Frame Visible Circle Does not Print Polyline
AutoCAD Rotate Command Tutorial Complete Reference Angle to Match Line Rotate Copy Align
00:03:56

AutoCAD Rotate Command Tutorial Complete Reference Angle to Match Line Rotate Copy Align
AutoCAD Extend Command Tutorial Complete Apparent Intersection Multiple Lines to Line and Arc
00:04:17

AutoCAD Extend Command Tutorial Complete Apparent Intersection Multiple Lines to Line and Arc
AutoCAD Copy Command Tutorial Complete With Base Point Multiple Displacement Single Array Fit
00:06:37

AutoCAD Copy Command Tutorial Complete With Base Point Multiple Displacement Single Array Fit
AutoCAD Erase Command and AutoCAD Selection Methods Tutorial Complete Box Lasso Dashed Line
00:05:54

AutoCAD Erase Command and AutoCAD Selection Methods Tutorial Complete Box Lasso Dashed Line
AutoCAD Mirror Command Tutorial Complete Mirror Text Reverse Upside Down Mirror Hatch Mirrtext
00:02:53

AutoCAD Mirror Command Tutorial Complete Mirror Text Reverse Upside Down Mirror Hatch Mirrtext
AutoCAD Explode Command Tutorial Complete Explode Block Array Group Hatch Polyline Text
00:02:02

AutoCAD Explode Command Tutorial Complete Explode Block Array Group Hatch Polyline Text
AutoCAD Stretch Command Tutorial Complete Stretch Multiple Lines Horizontally Multiple Objects
00:03:05

AutoCAD Stretch Command Tutorial Complete Stretch Multiple Lines Horizontally Multiple Objects
AutoCAD Scale Command Tutorial Complete Scale Factor Reference Copy Point Length to match
00:02:52

AutoCAD Scale Command Tutorial Complete Scale Factor Reference Copy Point Length to match

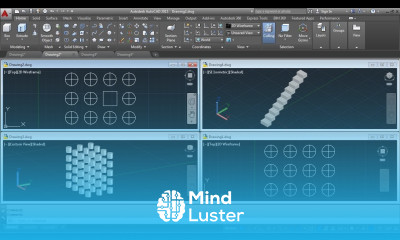

AutoCAD Rectangular Array Command Tutorial Complete 3D Array Edit Source Replace Item
00:05:57

AutoCAD Rectangular Array Command Tutorial Complete 3D Array Edit Source Replace Item
AutoCAD Polar Array Command Tutorial Complete 3D Array Angle Fill Angle Rotate Items
00:06:06

AutoCAD Polar Array Command Tutorial Complete 3D Array Angle Fill Angle Rotate Items

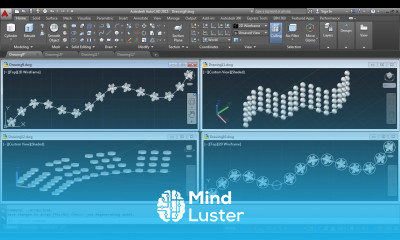

AutoCAD Path Array Command Tutorial Complete AutoCAD 3D Array Along Path Incremental Elevation
00:05:59

AutoCAD Path Array Command Tutorial Complete AutoCAD 3D Array Along Path Incremental Elevation
AutoCAD Lengthen Command Tutorial Complete Lengthen Line Change Arc Length Delta Percent Total
00:03:46

AutoCAD Lengthen Command Tutorial Complete Lengthen Line Change Arc Length Delta Percent Total
AutoCAD Pedit Command Tutorial Complete Edit Polyline Width Thickness Edit Vertex Join Spline
00:05:20

AutoCAD Pedit Command Tutorial Complete Edit Polyline Width Thickness Edit Vertex Join Spline
AutoCAD Align Command Tutorial Complete Move Rotate Scale Objects using Single Command
00:02:09

AutoCAD Align Command Tutorial Complete Move Rotate Scale Objects using Single Command
AutoCAD Break Break At Point Command Tutorial Complete AutoCAD Split Line into Segments
00:01:29

AutoCAD Break Break At Point Command Tutorial Complete AutoCAD Split Line into Segments
AutoCAD Join Command Tutorial Complete Join Multiple Lines Join Arcs Lines to Polyline
00:01:32

AutoCAD Join Command Tutorial Complete Join Multiple Lines Join Arcs Lines to Polyline
AutoCAD Parametric Drawing Tutorial AutoCAD Parametric Rectangle AutoCAD Formula Dimension
00:03:57

AutoCAD Parametric Drawing Tutorial AutoCAD Parametric Rectangle AutoCAD Formula Dimension
AutoCAD Copy Object from Block or Xref Ncopy Command Tutorial Complete Ncopy Multiple Objects
00:02:56

AutoCAD Copy Object from Block or Xref Ncopy Command Tutorial Complete Ncopy Multiple Objects
AutoCAD Overkill Command Tutorial Complete How to Delete Duplicate Objects in AutoCAD
00:04:05

AutoCAD Overkill Command Tutorial Complete How to Delete Duplicate Objects in AutoCAD

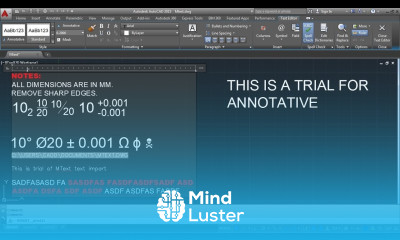

AutoCAD Mtext Command Tutorial Complete Multiline Text Editor Formatting Auto Numbering Bullets
