?What are the key components needed for setting up an HVAC vacuum pump hose system

The key components needed for setting up an HVAC vacuum pump hose system include: Vacuum Pump: A high-quality vacuum pump designed for HVAC use is essential for evacuating air and moisture from the system. Manifold Gauge Set: This includes high and low-pressure gauges and valves that help monitor the vacuum process and control refrigerant flow. Vacuum Hoses: These hoses are specifically designed for vacuum applications, typically with 1/4" or 3/8" fittings, and must be durable and leak-free. Valve Core Removers: These tools allow you to remove and replace valve cores without losing vacuum, ensuring a deep vacuum can be achieved. Adapters and Fittings: Depending on the HVAC system, various adapters and fittings may be required to connect the hoses and vacuum pump correctly. Micron Gauge: A micron gauge measures the level of vacuum achieved in the system, helping to ensure that all air and moisture have been evacuated.

?What steps should be followed to ensure a proper HVAC vacuum pump hose setup and achieve a deep vacuum

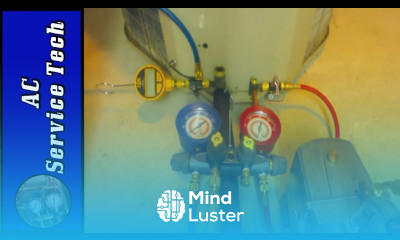

To ensure a proper HVAC vacuum pump hose setup and achieve a deep vacuum, follow these steps: Connect the Manifold Gauges: Attach the high and low-pressure hoses from the manifold gauge set to the corresponding service ports on the HVAC system. Attach the Vacuum Hoses: Connect the vacuum hoses from the manifold gauge set to the vacuum pump. Ensure all connections are tight and leak-free. Use Valve Core Removers: Install valve core removers on the service ports to allow for a more efficient evacuation process. Open the Valves: Open the valves on the manifold gauge set to allow the vacuum pump to communicate with the HVAC system. Start the Vacuum Pump: Turn on the vacuum pump and let it run. Monitor the gauges to ensure the vacuum is being drawn down correctly. Check the Micron Gauge: Attach a micron gauge to one of the service ports to measure the level of vacuum. Aim for a deep vacuum, typically below 500 microns, to ensure all air and moisture are removed. Hold the Vacuum: Once the desired vacuum level is reached, close the valves on the manifold gauge set and turn off the vacuum pump. Let the system hold the vacuum for a period (usually 30 minutes) to ensure there are no leaks. Finish the Setup: If the system holds the vacuum, it is ready for refrigerant charging. If not, check for leaks and repeat the process. By following these steps, you can achieve a proper vacuum pump hose setup and ensure the HVAC system is free of air and moisture.

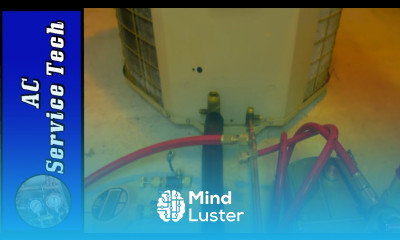

HVAC vacuum pump hose setup and procedure Tutorial

What will you learn in this course?

Master how to select appropriate hoses and fittings for various HVAC systems and ensure leak-free connections
Demonstrate proper techniques for connecting vacuum pumps, manifold gauges, and hoses in HVAC systems
Apply best practices for achieving deep vacuum and evacuating air and moisture from HVAC systems
Identify and troubleshoot common issues in vacuum pump hose setup to maintain system integrity

Implement safety protocols for handling refrigerants and operating vacuum pumps effectively
Monitor and verify vacuum levels during evacuation to ensure optimal HVAC system performance
Utilize proper tools such as valve core removers and gauges for efficient vacuum pump setup
Ensure reliable HVAC system operation by following industry standards for vacuum pump hose procedures
