?What are the key steps involved in mounting the indoor unit of a mini split air conditioner

The key steps involved in mounting the indoor unit of a mini split air conditioner are: Selecting the Location: Choose a location on an interior wall that is free from obstructions and has good airflow. Ensure it is high enough to allow for proper air circulation. Mounting Plate Installation: Attach the mounting plate securely to the wall using screws and anchors. Use a level to ensure the plate is straight. Drilling a Hole for the Refrigerant Lines: Drill a hole through the wall for the refrigerant lines, electrical wiring, and drain hose. The hole should be slightly larger than the combined diameter of the lines and positioned to allow a downward slope for the drain hose. Preparing the Indoor Unit: Connect the refrigerant lines, electrical wiring, and drain hose to the indoor unit according to the manufacturer's instructions. Mounting the Indoor Unit: Carefully lift the indoor unit and hang it on the mounting plate, ensuring all connections pass through the hole in the wall. Securing the Connections: Seal the hole with caulk or putty to prevent air leaks and pests from entering.

?What are the critical considerations for installing the outdoor condenser unit of a mini split air conditioner

Critical considerations for installing the outdoor condenser unit of a mini split air conditioner include: Location: Select a location that provides adequate airflow and is free from obstructions, debris, and direct sunlight. The unit should be placed on a flat, stable surface, preferably on a concrete pad or mounting brackets. Clearance: Ensure there is sufficient clearance around the unit for proper airflow and maintenance access. Typically, at least 12 inches of clearance on all sides and 24 inches above the unit is recommended. Vibration Isolation: Use rubber pads or vibration dampeners to reduce noise and vibration transfer to the building structure. Electrical Connection: Connect the outdoor unit to the power supply following local electrical codes and the manufacturer's instructions. Ensure the power is turned off before making any connections. Refrigerant Lines: Connect the refrigerant lines from the indoor unit to the outdoor condenser. Ensure the connections are tight and leak-free. Use a torque wrench to achieve the recommended tightness. Drainage: Ensure proper drainage for any condensate produced by the outdoor unit. If needed, install a drain pan or direct the condensate to a suitable drainage area. Final Checks: After installation, double-check all connections, including refrigerant lines and electrical wiring, to ensure they are secure and correct. By considering these factors, you can ensure the outdoor condenser unit is installed properly for optimal performance and longevity.

Mini Split Air conditioner Installation Course

5.0

(9 reviews)

29 Lessons
112 Students
Certificate of completion

Track:

Engineering

Mini Split Air conditioner Installation course, in this course we will learn about Mini Split Air Conditioner Installation, covering the complete process from planning to final testing. The course begins with an overview of mini split systems, highlighting their benefits and components. You will gain practical knowledge on selecting the best location for indoor and outdoor units, ensuring optimal performance and efficiency. Step-by-step instructions will guide you through mounting the indoor unit, installing the outdoor condenser, and running refrigerant lines. Detailed guidance on electrical wiring and connections will ensure safe and reliable operation. The course will also cover essential procedures for vacuuming and charging the system, as well as thorough testing and troubleshooting to verify correct installation. Emphasis will be placed on safety practices to prevent accidents and ensure compliance with industry standards. Hands-on exercises and real-world scenarios will enhance your practical skills, preparing you to tackle any mini split installation project confidently. By the end of this course, you will be equipped with the knowledge and skills to install mini split air conditioners efficiently and effectively.

To Register in Course you have to watch at least 30 Second of any lesson

What You'll Learn

Identify suitable locations for indoor and outdoor units to maximize efficiency and performance in mini split air conditioner installation
Demonstrate proper mounting techniques for indoor units ensuring stability and optimal airflow in mini split systems
Install outdoor condensers correctly, considering environmental factors and accessibility for maintenance in mini split setups
Connect refrigerant lines securely, ensuring leak-free operation and adherence to industry standards in mini split installation
Perform electrical wiring and connections safely, complying with electrical codes and ensuring reliable system operation

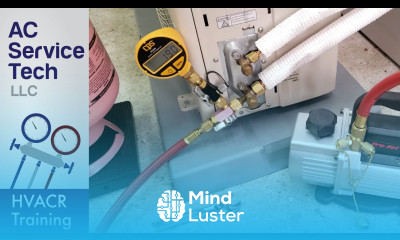

Vacuum and charge mini split systems accurately to prevent contamination and ensure optimal refrigerant levels
Conduct thorough testing of the installed mini split system to verify proper operation and cooling performance
Troubleshoot common installation issues, including refrigerant leaks, electrical faults, and airflow problems in mini split systems
Apply safety practices during installation to prevent accidents and ensure compliance with industry safety standards
Utilize hands-on skills and real-world scenarios to confidently complete mini split air conditioner installation projects
