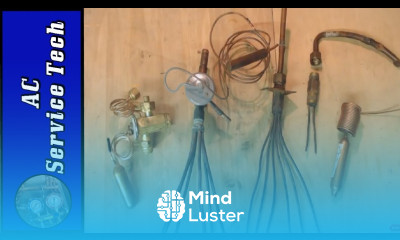

?What are the main types of HVAC metering devices, and how do they differ in their operation and applications

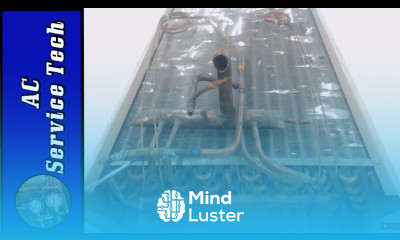

The main types of HVAC metering devices are: Thermostatic Expansion Valves (TXVs): These devices regulate the flow of refrigerant based on the superheat at the evaporator outlet. They are highly efficient and commonly used in variable load applications due to their ability to adjust the refrigerant flow dynamically. Capillary Tubes: Simple, fixed metering devices that use a thin tube to restrict refrigerant flow. They are typically used in small, constant load systems because they cannot adjust to varying load conditions. Electronic Expansion Valves (EEVs): These advanced devices use electronic controls to precisely regulate refrigerant flow, offering high efficiency and flexibility. They are ideal for modern HVAC systems requiring precise control. Fixed Orifice Metering Devices: These are simple, fixed metering devices with a fixed-size orifice. They are used in systems with relatively constant loads and are known for their simplicity and reliability. Each type differs in its ability to handle variable loads, control precision, and application suitability, making the choice of metering device critical for system efficiency and performance.

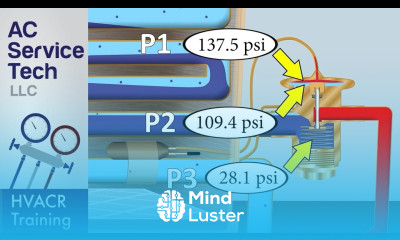

?How does a Thermostatic Expansion Valve (TXV) work, and what are its advantages over fixed orifice metering devices in HVAC systems

A Thermostatic Expansion Valve (TXV) works by regulating the flow of refrigerant into the evaporator coil based on the superheat temperature at the evaporator outlet. It consists of a sensing bulb, diaphragm, and needle valve. The sensing bulb, filled with refrigerant, responds to temperature changes. As the evaporator superheat increases, the pressure in the bulb rises, causing the diaphragm to move and open the needle valve, allowing more refrigerant to flow. Conversely, if the superheat decreases, the valve closes slightly, reducing the refrigerant flow. Advantages of TXVs over fixed orifice metering devices include: Dynamic Regulation: TXVs adjust the refrigerant flow in real-time based on the system's cooling demand, enhancing efficiency and performance. Improved Efficiency: By maintaining optimal superheat, TXVs prevent refrigerant overfeeding or underfeeding, leading to better energy efficiency. Adaptability to Load Changes: TXVs can handle varying loads effectively, making them suitable for systems with fluctuating cooling demands. Enhanced System Protection: TXVs help protect the compressor by ensuring that only vapor refrigerant returns to it, preventing potential damage caused by liquid refrigerant. These advantages make TXVs a preferred choice for many modern HVAC systems, especially those with variable load conditions.

HVAC metering device types techniques Course

4.4

(123 reviews)

41 Lessons
21 Students
Certificate of completion

Track:

Engineering

HVAC metering device types course, in this course designed for both beginners and experienced technicians. This course provides an in-depth understanding of various HVAC metering device types, essential for controlling refrigerant flow in heating and cooling systems. You will learn about the different types of metering devices, including thermostatic expansion valves (TXVs), capillary tubes, electronic expansion valves (EEVs), and fixed orifice metering devices. Each module covers the operation principles, advantages, and applications of these devices. Practical, hands-on exercises will equip you with the skills to select, install, and troubleshoot these metering devices effectively. Additionally, the course emphasizes the importance of proper metering device selection for system efficiency and reliability. By the end of this course, you will have the expertise to ensure optimal performance in HVAC systems through the correct application of metering devices. Enroll now to enhance your knowledge and skills in HVAC technology and take your career to the next level. Start your journey to mastering HVAC metering devices today.

To Register in Course you have to watch at least 30 Second of any lesson

What You'll Learn

Identify different types of HVAC metering devices including TXVs, capillary tubes, EEVs, and fixed orifice devices for efficient refrigerant control
Explain the operational principles and advantages of various HVAC metering devices to optimize heating and cooling system performance
Select appropriate HVAC metering devices based on system requirements, efficiency, and reliability considerations
Install HVAC metering devices correctly to ensure proper refrigerant flow and system functionality
Troubleshoot common issues in HVAC metering devices to maintain system efficiency and prevent failures
Evaluate the applications of thermostatic expansion valves, electronic expansion valves, and capillary tubes in different HVAC systems
Apply best practices for maintaining and servicing HVAC metering devices to extend their lifespan and performance
Enhance system efficiency by understanding the impact of metering device selection on refrigerant flow and energy consumption

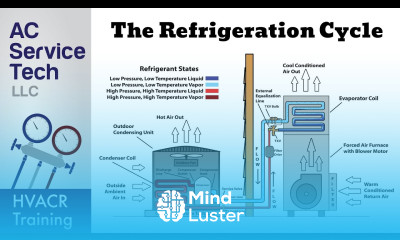

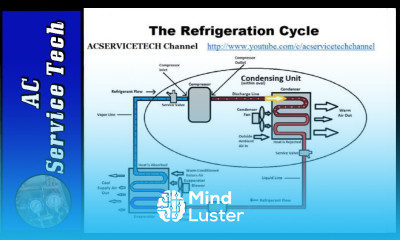

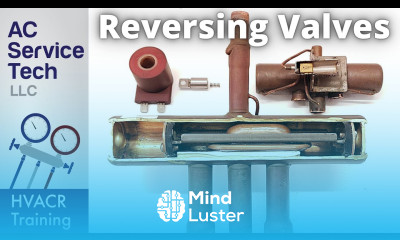

Course Content

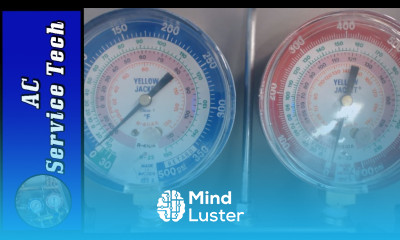

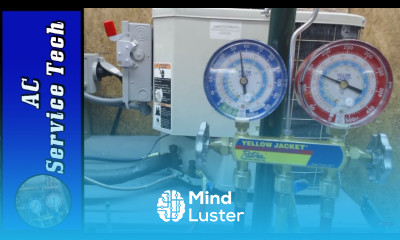

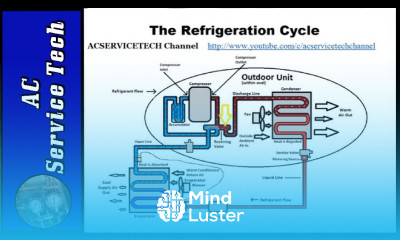

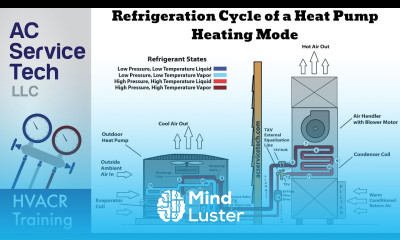

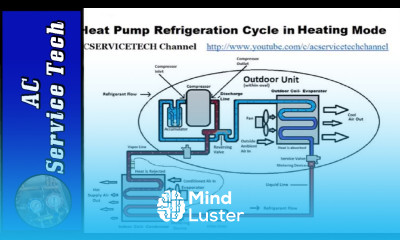

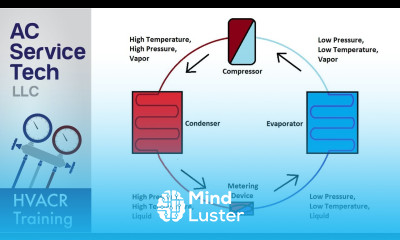

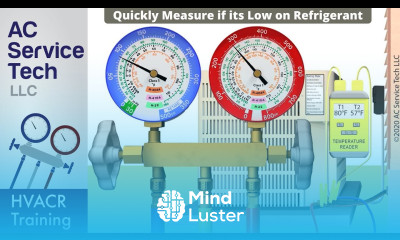

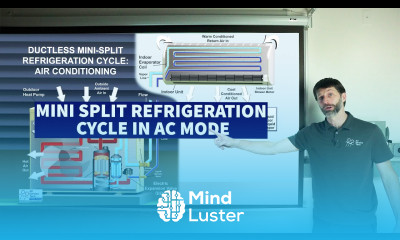

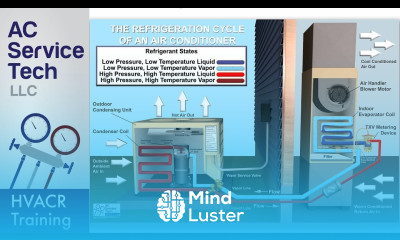

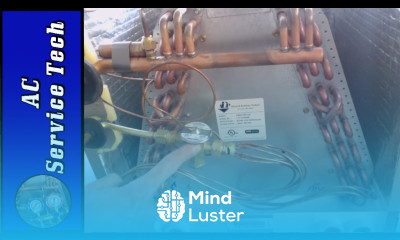

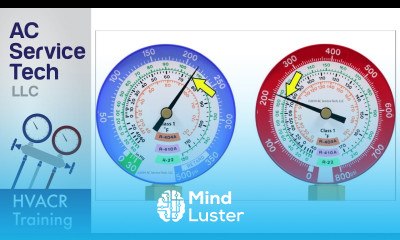

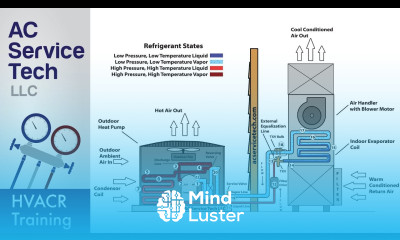

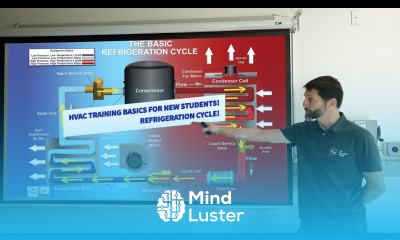

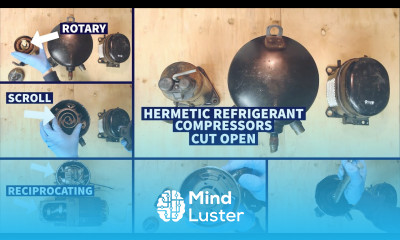

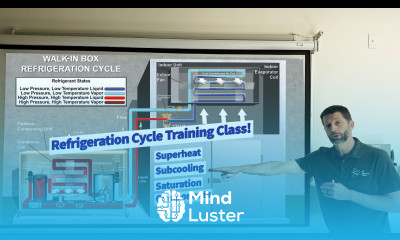

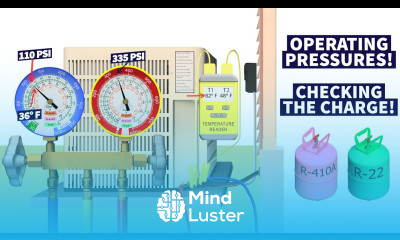

41 Lessons • 5 h 43 m total
