?What are the common symptoms of a failing gas furnace ignition control module, and how can these issues be diagnosed

Common symptoms of a failing gas furnace ignition control module include: Ignition Failure: The furnace does not ignite, leading to no heat production. This can be diagnosed by checking for a spark or glow from the igniter. If there is no ignition signal, the control module may be faulty. Short Cycling: The furnace turns on and off frequently without reaching the desired temperature. This can be diagnosed by inspecting the ignition control module for any signs of damage or wear and testing the module's connections and outputs. Delayed Ignition: There is a delay between the thermostat calling for heat and the furnace igniting. This can be diagnosed by monitoring the ignition sequence and checking if the control module is sending the proper signals at the correct times. Erratic Operation: The furnace operates unpredictably, sometimes failing to ignite or shutting down unexpectedly. This can be diagnosed by examining the ignition control module for loose or corroded connections and testing its functionality with a multimeter. To diagnose these issues, follow these steps: Visual Inspection: Check the ignition control module for visible signs of damage, such as burnt components or loose connections. Test Components: Use a multimeter to test the continuity and voltage of the igniter, flame sensor, and other related components. Check Error Codes: Many modern furnaces have diagnostic lights or display error codes. Refer to the furnace manual to interpret these codes and pinpoint the issue.

?How can a technician troubleshoot a gas furnace that fails to ignite due to ignition control problems, and what steps should be taken to resolve the issue

To troubleshoot a gas furnace that fails to ignite due to ignition control problems, a technician can follow these steps: Verify Power Supply: Ensure the furnace is receiving power by checking the circuit breaker and any fuses. Reset or replace as necessary. Inspect the Thermostat: Make sure the thermostat is set to "heat" and is calling for heat. Check the thermostat’s wiring and batteries if applicable. Examine the Igniter: Check the igniter for cracks or damage and use a multimeter to test for continuity. If the igniter is faulty, replace it. Test the Flame Sensor: Clean the flame sensor with fine sandpaper to remove any buildup. If the sensor is damaged, replace it. Check the Gas Supply: Ensure the gas valve is open and that there is adequate gas pressure. Listen for the sound of gas flowing when the furnace tries to ignite. Inspect the Ignition Control Module: Visually inspect the module for signs of damage or wear. Use a multimeter to test for proper voltage and signals during the ignition sequence. Check for Error Codes: Refer to the furnace manual for any error codes displayed by the control module. These codes can help identify specific issues with the ignition control. Steps to Resolve the Issue: Replace Faulty Components: Replace any defective parts identified during the troubleshooting process, such as the igniter, flame sensor, or ignition control module. Secure Connections: Ensure all electrical connections are tight and free of corrosion. Reset the System: After replacing components, reset the furnace according to the manufacturer’s instructions and test the ignition sequence. By systematically checking these components and following these steps, a technician can effectively diagnose and resolve ignition control problems, ensuring the furnace operates safely and efficiently.

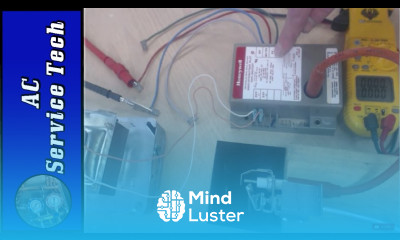

Gas Furnace Ignition control troubleshooting Tutorial

What will you learn in this course?

Diagnose and troubleshoot gas furnace ignition control systems using industry-standard tools and techniques effectively
Identify common ignition failure causes in intermittent pilot, hot surface, and direct spark ignition systems accurately
Apply safety protocols during diagnostics and repairs to ensure safe and compliant HVAC maintenance practices
Resolve ignition system issues such as short cycling, delayed ignition, and failure to ignite efficiently
Perform maintenance and adjustments on various ignition controls to optimize furnace performance and reliability
Interpret system diagnostics and error codes to pinpoint ignition control malfunctions precisely
Implement troubleshooting procedures for ignition control components, including sensors, wiring, and control boards
Enhance troubleshooting skills through hands-on practice with real-world gas furnace ignition problems

Understand the operation and differences of various ignition control types for accurate diagnosis and repair
Utilize industry-standard diagnostic tools to test ignition components and identify faults quickly
Develop preventive maintenance routines to reduce ignition system failures and extend equipment lifespan
Troubleshoot electrical wiring and connections associated with gas furnace ignition systems effectively
Identify safety hazards related to ignition control systems and apply appropriate safety measures during repairs
Optimize furnace ignition performance by adjusting control settings and replacing faulty components
Gain confidence in diagnosing complex ignition issues through practical, scenario-based training exercises
Improve troubleshooting speed and accuracy to minimize furnace downtime and enhance customer satisfaction
