?How does an electromagnetic flow meter measure the flow rate of a liquid

An electromagnetic flow meter measures the flow rate of a liquid based on Faraday's Law of Electromagnetic Induction. When a conductive fluid flows through a magnetic field generated by coils in the flow meter, it induces a voltage proportional to the flow velocity. Electrodes placed perpendicular to the magnetic field and the flow direction detect this induced voltage. The meter’s transmitter then processes this voltage signal to determine the flow rate. The induced voltage is directly proportional to the flow rate, meaning higher flow rates produce higher voltage signals, allowing for accurate measurement of the liquid's flow.

?What are some common issues that can affect the accuracy of an electromagnetic flow meter, and how can they be resolved

Common issues that can affect the accuracy of an electromagnetic flow meter include improper installation, air bubbles in the fluid, and deposits on the electrodes. Improper Installation: Ensuring the meter is installed correctly, with a full pipe and proper grounding, is crucial. Misalignment or an empty pipe can lead to inaccurate readings. Air Bubbles: Air bubbles can disrupt the magnetic field and cause erroneous measurements. To resolve this, install the meter in a location where air is less likely to accumulate or use air elimination devices. Deposits on Electrodes: Conductive or insulating deposits on the electrodes can interfere with the voltage signal. Regular maintenance and cleaning of the flow tube and electrodes help prevent buildup and maintain accuracy. By addressing these issues, you can ensure reliable and precise operation of the electromagnetic flow meter.

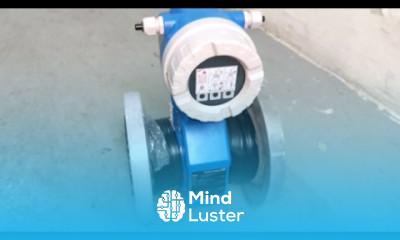

Electromagnetic Flow meter works Principles Course

4.5

(97 reviews)

21 Lessons
54 Students
Certificate of completion

Track:

Engineering

Electromagnetic Flow meter works course, in this course we will learn about how electromagnetic flow meters work, delving into the principles and technology behind these essential devices used for measuring the flow rate of liquids. We will explore the fundamental concepts of electromagnetic induction, which is the basis of their operation, and understand how these meters utilize a magnetic field and electrodes to detect the flow of conductive fluids. The course will cover key components, including the flow tube, electrodes, and transmitter, and explain how they interact to provide accurate measurements. Participants will gain insights into the installation process, best practices for calibration, and techniques for troubleshooting common issues. The course will also discuss the various applications of electromagnetic flow meters in industries such as water treatment, chemical processing, and food and beverage production. By the end of the course, you will be equipped with the knowledge and skills to effectively use and maintain electromagnetic flow meters, ensuring optimal performance and reliability in your specific applications. This comprehensive course combines theoretical knowledge with practical insights to enhance your understanding and expertise in electromagnetic flow meter technology.

To Register in Course you have to watch at least 30 Second of any lesson

What You'll Learn

Understand electromagnetic induction principles underlying electromagnetic flow meters for accurate liquid flow measurement
Identify key components such as flow tube, electrodes, and transmitter, and explain their roles in flow meter operation
Describe the working mechanism of electromagnetic flow meters in measuring conductive fluids in industrial applications
Apply best practices for installing electromagnetic flow meters to ensure precise and reliable flow measurement
Perform calibration procedures to optimize electromagnetic flow meter accuracy in various liquid flow scenarios
Troubleshoot common issues in electromagnetic flow meters, including signal interference and electrode fouling
Assess the suitability of electromagnetic flow meters for water treatment, chemical processing, and food industry applications
Maintain electromagnetic flow meters effectively to ensure long-term performance and measurement reliability
Interpret flow measurement data from electromagnetic flow meters for process control and operational decision-making
Implement safety and environmental considerations when installing and operating electromagnetic flow meters in industrial settings
