?What are the key steps involved in achieving a precise large elbow to pipe fit-up

Achieving a precise large elbow to pipe fit-up involves several key steps: Preparation: Ensure the pipe and elbow ends are clean and free from rust, dirt, and grease. Properly bevel the ends if required, according to the specifications. Measurement and Marking: Measure and mark the alignment points on both the pipe and elbow to ensure proper orientation. Use a measuring tape, chalk, and other marking tools for accuracy. Alignment: Use alignment tools such as clamps, jigs, and fixtures to hold the pipe and elbow in place. Ensure that the alignment marks match up and the joint is correctly positioned. Tacking: Apply tack welds at several points around the joint to hold the pipe and elbow together temporarily. This prevents movement during the full welding process. Checking Alignment: Re-check the alignment after tacking to ensure there has been no movement. Adjust if necessary before proceeding to the final weld. Final Welding: Perform the final weld using appropriate welding techniques (such as TIG, MIG, or stick welding) and ensure the weld bead is even and consistent around the joint. Inspection: Inspect the weld visually and, if required, use non-destructive testing (NDT) methods such as radiography or ultrasonic testing to ensure the weld integrity. By following these steps, you can achieve a precise and secure fit-up, ensuring the reliability and safety of the piping system.

?What common challenges might you encounter during large elbow to pipe fit-up, and how can you address them

Common challenges during large elbow to pipe fit-up include: Out-of-Roundness: Large pipes and elbows can become oval-shaped during handling and transportation. To address this, use pipe clamps and reforming tools to bring the pipe and elbow back to a round shape before fit-up. Misalignment: Ensuring proper alignment can be difficult, especially with heavy components. Utilize alignment jigs, strongbacks, and proper support to maintain alignment during the fit-up process. Re-check alignment frequently, especially after tacking. Gap Uniformity: Maintaining a consistent gap between the pipe and elbow is crucial for a quality weld. Use spacing tools or wedges to ensure the gap is uniform around the circumference of the joint. Welding Distortion: Heat from welding can cause distortion, leading to misalignment or changes in shape. Minimize distortion by using appropriate welding sequences and techniques, such as backstepping or staggered welding. Access and Maneuverability: Large components can be challenging to maneuver and fit in tight spaces. Plan the fit-up process carefully, ensuring you have adequate space and the necessary lifting and positioning equipment. Safety: Handling large and heavy components poses safety risks. Ensure that proper lifting techniques and equipment are used, and that all personnel are aware of and follow safety protocols. By anticipating and addressing these challenges, you can achieve a successful large elbow to pipe fit-up, ensuring the structural integrity and performance of the piping system.

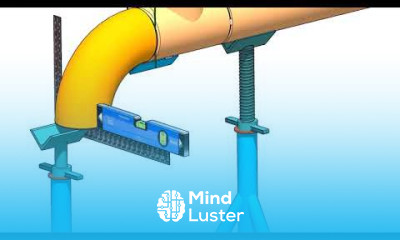

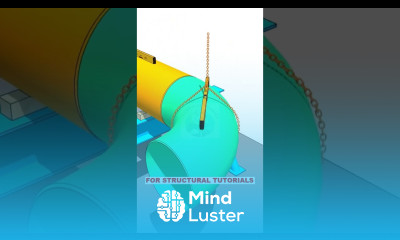

Large Elbow to Pipe fitup methods Tutorial

What will you learn in this course?

Master precise large elbow to pipe fit-up techniques for industrial piping systems
Apply best practices for aligning large diameter pipes and elbows using jigs and fixtures
Utilize specialized tools to ensure accurate measurements and cuts in pipe fitting processes
Implement effective welding methods for large pipe and elbow joints to ensure durability and leak-proof connections
Identify and address common fit-up challenges such as out-of-roundness and bevel angle inaccuracies
Conduct safety protocols and quality control measures during large elbow to pipe fit-up procedures

Prepare pipes and elbows for fit-up by measuring, cutting, and aligning with industry standards
Evaluate fit-up quality to ensure compliance with engineering specifications and safety regulations
Troubleshoot and resolve common issues encountered during large elbow pipe fitting processes
Enhance skills in industrial piping fabrication, assembly, and welding for large diameter systems
Improve proficiency in using tools, fixtures, and techniques for large pipe and elbow fit-up
Develop expertise in ensuring leak-proof, durable connections in complex piping configurations
