?What is the basic principle behind a capacitor tester

A capacitor tester works by measuring the time it takes for a capacitor to charge or discharge through a resistor, which is related to its capacitance. Using simple circuits, such as those involving a 555 timer IC, the tester measures the charge/discharge cycle and calculates the capacitance based on this timing. This principle allows the tester to determine the capacitor's value without complex electronics.

?Why make a capacitor tester instead of using a multimeter

While multimeters can measure capacitance, they often have limitations with very small or very large capacitors and may lack precision. Building a dedicated capacitor tester provides greater flexibility, allowing you to test a wider range of capacitance values with potentially higher accuracy. It also offers a learning experience in circuit design and gives you the ability to customize features for specific testing needs.

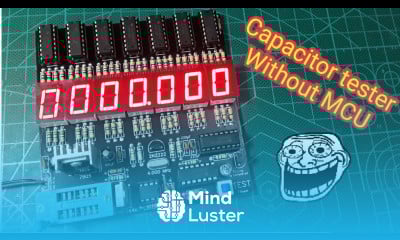

Making capacitor tester without arduino Course

4.5

(21 reviews)

2 Lessons
42 Students
Certificate of completion

Track:

Engineering

Making capacitor tester course, in this course you will learn to design and construct a functional capacitor tester to measure the capacitance of various capacitors. This course guides you through the fundamental concepts of capacitance, the principles behind testing capacitors, and understanding their roles in electronic circuits. You’ll explore the essentials of analog circuit design, learn about critical components like resistors, capacitors, and transistors, and discover how they work together to measure capacitance effectively. Through hands-on lessons, we’ll build a simple yet effective capacitor tester without the need for microcontrollers like Arduino. We’ll focus on key measurement techniques, such as charging and discharging cycles, using tools like the 555 timer IC or other basic analog components to determine the value of capacitance accurately. Additionally, this course will cover practical applications and troubleshooting tips for identifying faulty capacitors. By the end, you’ll be equipped with a fully functioning capacitor tester and the knowledge to apply it in various electronics projects and maintenance tasks, boosting your electronics skill set.

To Register in Course you have to watch at least 30 Second of any lesson

What You'll Learn

Design and build a capacitor tester using analog components like 555 timer ICs and transistors for capacitance measurement
Understand the fundamental principles of capacitance and how they apply to testing electronic components
Apply charging and discharging techniques to accurately measure capacitor values without microcontrollers
Troubleshoot and identify faulty capacitors in electronic circuits using a self-made analog capacitor tester
