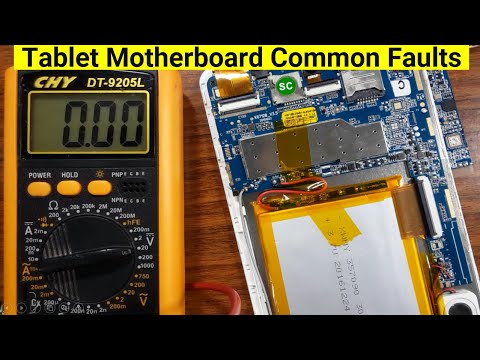

The most common faults On Tablet Motherboard Tablet Motherboard Repair

Share your inquiries now with community members Click Here
Previous Lesson Next Lesson
Sign Up and Get Free Certificate
Sign up Now
Lesson extensions

Lessons List | 244 Lesson
Learn how track Laptop motherboard voltage laptop schematics reading
00:07:17

Learn how track Laptop motherboard voltage laptop schematics reading
Laptop Motherboard DC Battery Changer Circuit
00:14:44

Laptop Motherboard DC Battery Changer Circuit
3V and 5V Laptop System Power IC circuit explained
00:10:03

3V and 5V Laptop System Power IC circuit explained
Random Access Memory RAM Power Supply
00:07:46

Random Access Memory RAM Power Supply
CPU VCC CORE and VGFX PWM regulator Circuit
00:09:18

CPU VCC CORE and VGFX PWM regulator Circuit
Learn Laptop Motherboard power sequence
00:10:06

Learn Laptop Motherboard power sequence
Laptop Troubleshoot process and how to diagnose failed laptop
00:03:32

Laptop Troubleshoot process and how to diagnose failed laptop
How to diagnose a laptop motherboard using Decision Trees
00:07:41

How to diagnose a laptop motherboard using Decision Trees
How to Check SMD Diodes with Multimeter
00:06:46

How to Check SMD Diodes with Multimeter
Motherboard Crystal oscillators theory working principle explained
00:02:54

Motherboard Crystal oscillators theory working principle explained
Learn SMD components symbols used in electronics
00:06:20

Learn SMD components symbols used in electronics
Understanding the Basic Input Output System BIOS chip Programming and circuit diagram
00:04:04

Understanding the Basic Input Output System BIOS chip Programming and circuit diagram
Motherboard chipsets buses explained
00:04:02

Motherboard chipsets buses explained
SMD diodes explained surface mount device technology
00:03:40

SMD diodes explained surface mount device technology
Electrolytic SMD capacitors symbols explained
00:02:31

Electrolytic SMD capacitors symbols explained
8 pins MOSFET pin configuration identify MOSFET transistor pinout
00:04:27

8 pins MOSFET pin configuration identify MOSFET transistor pinout
How to test Zener diode with a multimeter
00:05:15

How to test Zener diode with a multimeter
How to test N channel MOSFET P channel MOSFET with a multimeter
00:06:00

How to test N channel MOSFET P channel MOSFET with a multimeter
Symbols of electronic components part 1
00:03:22

Symbols of electronic components part 1
Electronic components symbols part 2
00:01:53

Electronic components symbols part 2
Discover the main symbols of electronic components
00:03:52

Discover the main symbols of electronic components
Learn how to read laptop schematics diagrams part 1 laptop schematics tracing Computer schemes
00:10:15

Learn how to read laptop schematics diagrams part 1 laptop schematics tracing Computer schemes
Computer charge controller IC and system power selector pin configuration Charge IC BQ24703
00:08:21

Computer charge controller IC and system power selector pin configuration Charge IC BQ24703
Laptop schematics reading learn how to read the laptop circuit diagram table of content
00:06:39

Laptop schematics reading learn how to read the laptop circuit diagram table of content
Laptop schematic studying motherboard components symbols basic electronics symbols
00:09:15

Laptop schematic studying motherboard components symbols basic electronics symbols
25 electronics electrical symbols everyone should know electronic components symbols meanings
00:10:21

25 electronics electrical symbols everyone should know electronic components symbols meanings
Integrated circuits architecture and pin configuration schematics reading and wiring symbols
00:08:40

Integrated circuits architecture and pin configuration schematics reading and wiring symbols
MOSFETs Transistors testing how MOSFET Transistor works MOSFET Transistor pin configuration
00:08:50

MOSFETs Transistors testing how MOSFET Transistor works MOSFET Transistor pin configuration
Basic electronics circuits and symbols explained basic Electrical component symbols and circuits
00:08:20

Basic electronics circuits and symbols explained basic Electrical component symbols and circuits
Learn how to test NPN transistor and PNP transistor identify transistor base collector and emitter
00:08:25

Learn how to test NPN transistor and PNP transistor identify transistor base collector and emitter
Learn how to test transistors with a multimeter on a circuit board how to check transistor MOSFET
00:09:19

Learn how to test transistors with a multimeter on a circuit board how to check transistor MOSFET
Laptop motherboard main circuits PWM ICs charge IC CPU PWM IC RAM IC VCCcore VCCP VTT VDD
00:16:54

Laptop motherboard main circuits PWM ICs charge IC CPU PWM IC RAM IC VCCcore VCCP VTT VDD
Important components of motherboard Basic motherboard components explained MOSFETS Capacitors etc
00:15:28

Important components of motherboard Basic motherboard components explained MOSFETS Capacitors etc
SMD transistor testing using the multimeter tutorial
00:10:34

SMD transistor testing using the multimeter tutorial
SMD diode testing using multimeter guide
00:08:34

SMD diode testing using multimeter guide
Laptop Motherboard Circuit With Schematic Analysis
00:10:00

Laptop Motherboard Circuit With Schematic Analysis
Learn Laptop CPU Circuit Processor Circuit Analysis using schematics
00:10:06

Learn Laptop CPU Circuit Processor Circuit Analysis using schematics
How to diagnose repair a Dead laptop motherboard
00:31:25

How to diagnose repair a Dead laptop motherboard
Uncover the Secrets of Motherboard Signal Tracking Track Signals Voltages on any Board
00:10:51

Uncover the Secrets of Motherboard Signal Tracking Track Signals Voltages on any Board
Laptop motherboard repair USB connectors circuit studying
00:11:38

Laptop motherboard repair USB connectors circuit studying
