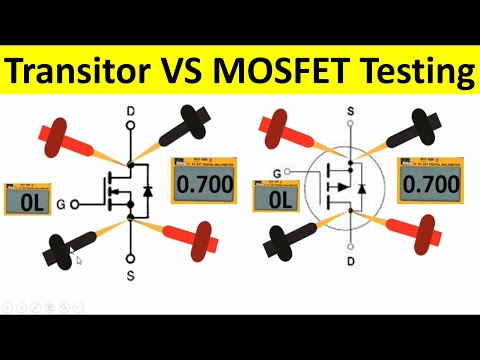

8 Pins MOSFET Testing VS 3 Pin MOSFET Testing Using a Multimeter how to test mosfet

Hide All Ads - Subscribe Premium Service Now
Share your inquiries now with community members Click Here
Hide All Ads - Subscribe Premium Service Now
Previous Lesson Next Lesson
Sign Up and Get Free Certificate
Sign up Now
Lesson extensions

Lessons List | 244 Lesson
Learn how track Laptop motherboard voltage laptop schematics reading
00:07:17

Learn how track Laptop motherboard voltage laptop schematics reading
Laptop Motherboard DC Battery Changer Circuit
00:14:44

Laptop Motherboard DC Battery Changer Circuit
3V and 5V Laptop System Power IC circuit explained
00:10:03

3V and 5V Laptop System Power IC circuit explained
Random Access Memory RAM Power Supply
00:07:46

Random Access Memory RAM Power Supply
CPU VCC CORE and VGFX PWM regulator Circuit
00:09:18

CPU VCC CORE and VGFX PWM regulator Circuit
Learn Laptop Motherboard power sequence
00:10:06

Learn Laptop Motherboard power sequence
Laptop Troubleshoot process and how to diagnose failed laptop
00:03:32

Laptop Troubleshoot process and how to diagnose failed laptop
How to diagnose a laptop motherboard using Decision Trees
00:07:41

How to diagnose a laptop motherboard using Decision Trees
How to Check SMD Diodes with Multimeter
00:06:46

How to Check SMD Diodes with Multimeter
Motherboard Crystal oscillators theory working principle explained
00:02:54

Motherboard Crystal oscillators theory working principle explained
Learn SMD components symbols used in electronics
00:06:20

Learn SMD components symbols used in electronics
Understanding the Basic Input Output System BIOS chip Programming and circuit diagram
00:04:04

Understanding the Basic Input Output System BIOS chip Programming and circuit diagram
Motherboard chipsets buses explained
00:04:02

Motherboard chipsets buses explained
SMD diodes explained surface mount device technology
00:03:40

SMD diodes explained surface mount device technology
Electrolytic SMD capacitors symbols explained
00:02:31

Electrolytic SMD capacitors symbols explained
8 pins MOSFET pin configuration identify MOSFET transistor pinout
00:04:27

8 pins MOSFET pin configuration identify MOSFET transistor pinout
How to test Zener diode with a multimeter
00:05:15

How to test Zener diode with a multimeter
How to test N channel MOSFET P channel MOSFET with a multimeter
00:06:00

How to test N channel MOSFET P channel MOSFET with a multimeter
Symbols of electronic components part 1
00:03:22

Symbols of electronic components part 1
Electronic components symbols part 2
00:01:53

Electronic components symbols part 2
Discover the main symbols of electronic components
00:03:52

Discover the main symbols of electronic components
Learn how to read laptop schematics diagrams part 1 laptop schematics tracing Computer schemes
00:10:15

Learn how to read laptop schematics diagrams part 1 laptop schematics tracing Computer schemes
Computer charge controller IC and system power selector pin configuration Charge IC BQ24703
00:08:21

Computer charge controller IC and system power selector pin configuration Charge IC BQ24703
Laptop schematics reading learn how to read the laptop circuit diagram table of content
00:06:39

Laptop schematics reading learn how to read the laptop circuit diagram table of content
Laptop schematic studying motherboard components symbols basic electronics symbols
00:09:15

Laptop schematic studying motherboard components symbols basic electronics symbols
25 electronics electrical symbols everyone should know electronic components symbols meanings
00:10:21

25 electronics electrical symbols everyone should know electronic components symbols meanings
Integrated circuits architecture and pin configuration schematics reading and wiring symbols
00:08:40

Integrated circuits architecture and pin configuration schematics reading and wiring symbols
MOSFETs Transistors testing how MOSFET Transistor works MOSFET Transistor pin configuration
00:08:50

MOSFETs Transistors testing how MOSFET Transistor works MOSFET Transistor pin configuration
Basic electronics circuits and symbols explained basic Electrical component symbols and circuits
00:08:20

Basic electronics circuits and symbols explained basic Electrical component symbols and circuits
Learn how to test NPN transistor and PNP transistor identify transistor base collector and emitter
00:08:25

Learn how to test NPN transistor and PNP transistor identify transistor base collector and emitter
Learn how to test transistors with a multimeter on a circuit board how to check transistor MOSFET
00:09:19

Learn how to test transistors with a multimeter on a circuit board how to check transistor MOSFET
Laptop motherboard main circuits PWM ICs charge IC CPU PWM IC RAM IC VCCcore VCCP VTT VDD
00:16:54

Laptop motherboard main circuits PWM ICs charge IC CPU PWM IC RAM IC VCCcore VCCP VTT VDD
Important components of motherboard Basic motherboard components explained MOSFETS Capacitors etc
00:15:28

Important components of motherboard Basic motherboard components explained MOSFETS Capacitors etc
SMD transistor testing using the multimeter tutorial
00:10:34

SMD transistor testing using the multimeter tutorial
SMD diode testing using multimeter guide
00:08:34

SMD diode testing using multimeter guide
Laptop Motherboard Circuit With Schematic Analysis
00:10:00

Laptop Motherboard Circuit With Schematic Analysis
Learn Laptop CPU Circuit Processor Circuit Analysis using schematics
00:10:06

Learn Laptop CPU Circuit Processor Circuit Analysis using schematics
How to diagnose repair a Dead laptop motherboard
00:31:25

How to diagnose repair a Dead laptop motherboard
Uncover the Secrets of Motherboard Signal Tracking Track Signals Voltages on any Board
00:10:51

Uncover the Secrets of Motherboard Signal Tracking Track Signals Voltages on any Board
Laptop motherboard repair USB connectors circuit studying
00:11:38

Laptop motherboard repair USB connectors circuit studying
Show More Lessons

Comments

You must have an account within the platform in order to participate in the discussion and comment. Register now for freeClick here

Our New Certified Courses Will Reach You in Our Telegram Channel
Join Our Telegram Channels to Get Best Free Courses

Join Now

We Appreciate Your Feedback

Excellent
1 Reviews
Good
0 Reviews
medium
0 Reviews
Acceptable
0 Reviews
Not Good
0 Reviews
5
1 Reviews
Green Circle

Best to ever do it! 2025-02-11

Show More Reviews


Related Courses in Computer Softwares
Hide All Ads - Subscribe Premium Service Now
Excel Power Query
41 Lessons

Excel Power Query

Excel VBA
36 Lessons

Excel VBA

Excel Dashboard
21 Lessons

Excel Dashboard

Excel Course Basic to Advanced
26 Lessons

Excel Course Basic to Advanced

Excel Functions
66 Lessons

Excel Functions

Excel Charting
18 Lessons

Excel Charting

Microsoft Access
23 Lessons

Microsoft Access

Microsoft PowerPoint
52 Lessons

Microsoft PowerPoint

Microsoft Word
46 Lessons

Microsoft Word

Microsoft Excel
49 Lessons

Microsoft Excel

Digital Media Literacy
15 Lessons

Digital Media Literacy

Google Classroom
5 Lessons

Google Classroom

Google Slides
18 Lessons

Google Slides

Google Sheets Full data
15 Lessons

Google Sheets Full data

Google Docs
34 Lessons

Google Docs

Google Drive
11 Lessons

Google Drive

Course Description

Laptop Schematics course, in this course will dive into the intricacies of understanding and interpreting schematic diagrams specific to laptops. This course provides a comprehensive overview of the various symbols, conventions, and components depicted in laptop schematics. Participants will learn to identify critical components such as processors, memory modules, and power management circuits, and understand their interconnections. Through detailed explanations and practical examples, learners will gain proficiency in tracing signal paths, analyzing voltage distribution, and troubleshooting common hardware issues using schematic diagrams. By the end of the course, participants will possess the skills and knowledge necessary to confidently navigate and interpret laptop schematics, enabling them to diagnose and resolve hardware problems effectively.
